Description
B164 1kW 0° Thru-Hull Transducer with Blue Connector
The B164 is a 1kW bronze low-profile transducer with a fast-response temperature sensor. The transducer is ideal for fast, trailered, tournament, sport-fishing boats that cannot install an external fairing. This version has a zero degree tilt for hull deadrise angles of 0-7 degrees.
The BL (Blue Connector) version of the B164 transducer is for Lowrance fishfinders and sounders that use the standard Lowrance 7-pin blue connector. This includes the Lowrance HDS series and many other current and discontinued Lowrance units. The B164 BL version is also for the Simrad NSE series.
Features:
- Power output 1000W
- 3.875″ hole size (98mm)
- Beam 22 x 20° at 50kHz, 6 x 6° at 200kHz
- Maximum depth 1200-1800 ft @ 50kHz
- Maximum depth 500-800 ft @ 200kHz
![Furuno TM185M Medium-Frequency CHIRP Transducer w /Temperature - Urethane Transom Mount w /Stainless Bracket [TM185M]](https://www.topmarinebattery.com/wp-content/uploads/2026/08/furuno-tm185m-medium-frequency-chirp-transducer-w-temperature-urethane-transom-m.webp)

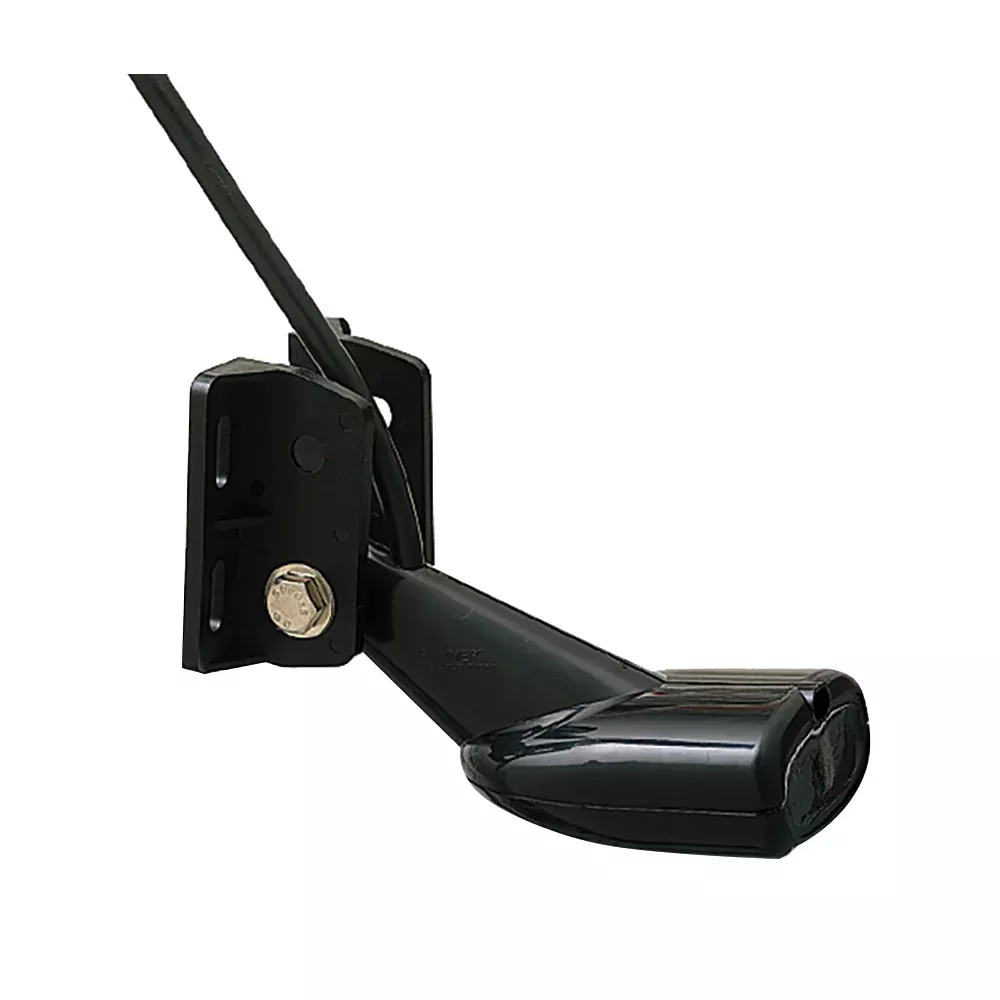

![Navico Cruise /Hook2 83 /200 Skimmer Transom Mount Transducer [000-15053-001]](https://www.topmarinebattery.com/wp-content/uploads/2026/08/navico-cruise-hook2-83-200-skimmer-transom-mount-transducer-000-15053-001.webp)

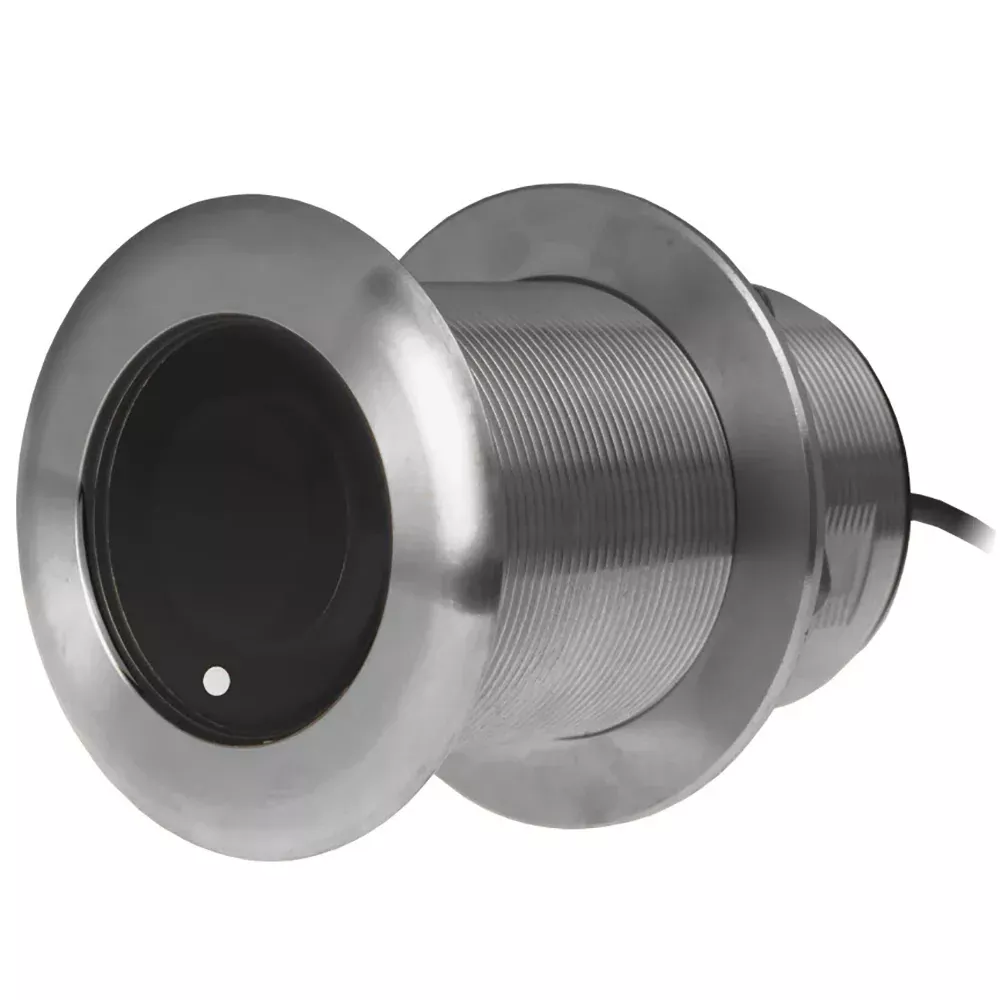

![Furuno SS75M Stainless Steel Thru-Hull Chirp Transducer - 12 Tilt - Med Frequency [SS75M /12]](https://www.topmarinebattery.com/wp-content/uploads/2026/08/furuno-ss75m-stainless-steel-thru-hull-chirp-transducer-12-tilt-med-frequency-ss.webp)
